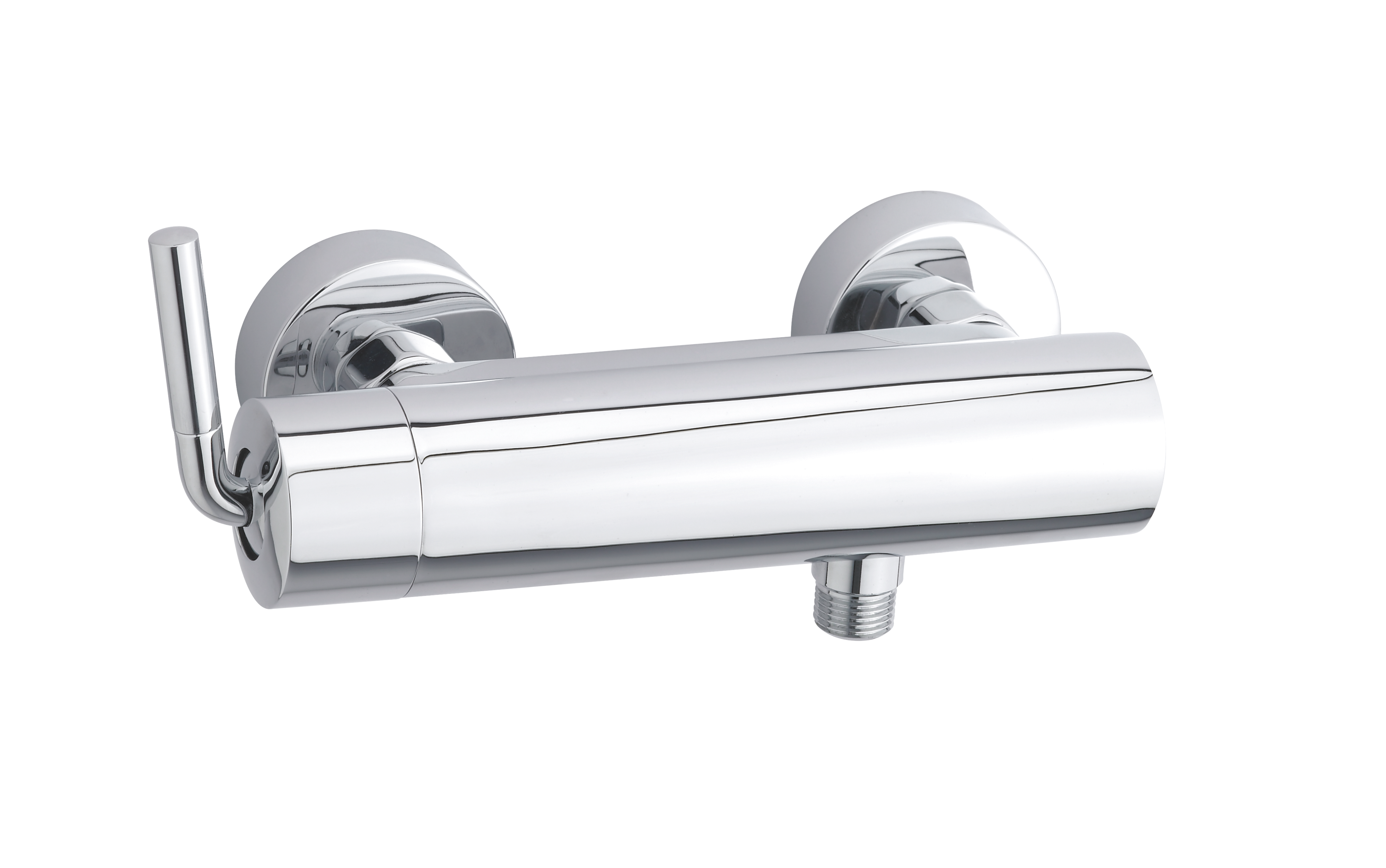

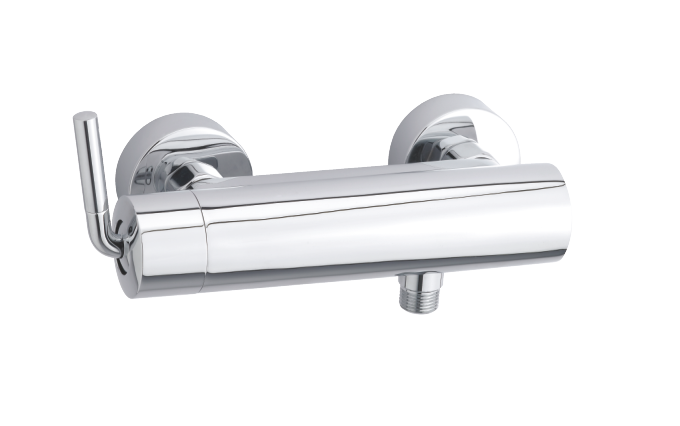

Damixa Arc shower mixer in chrome
Damixa Arc shower mixer in chrome

Arc
Shower Mixer chrome (Discontinued)

Article no.:

292000000

Finish:

Chrome

Series:

Arc

EAN no.:

5708516726838

All round innovation and elegance

Arc is a textbook example of Danish design at its best. Innovation when it makes most sense. With its unique 360-degree operation, Arc can be manoeuvred all the way around the kitchen sink. The most flexible and versatile range of kitchen taps on the market is available with multi-coloured handles and spouts and has been awarded with both the Red Dot Design Award and iF Design Award.

How we created Arc

Arc is created from our desire to develop the most flexible Damixa tap fixture ever. As soon as the unique 360 degree movement was in place, the task of completing the innovation was up to designer Jakob Jensen:

“The challenge was to let the design show what Arc can do, in order for the user to be able to understand it intuitively. One could say that the functionality contributed greatly in dictating the design. For example, I chose to give the spout a different, more distinctive type of profile. The tap has been turned around to face the opposite side, giving the user a hint that it can be turned to 360 degrees,” says Jakob Jensen.

Anti Scalding
Anti Scalding
Eco Click
Eco Click
Standard features
Ceramic cartridge
Scalding protection (38ºC)
Water consumption max.20 l/min
Standard 150mm centres
Eco-Click water saving feature
With 3/4" wall plates & eccentric unions
1/2" connection for hand shower hose
Certificates
Drawings & documents
Download Spare part drawing
Download User guide

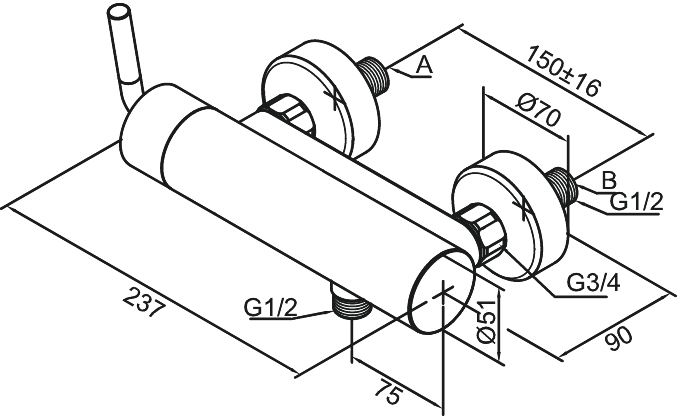

Download Dimension drawing
Download Cleaning guide
Download Product picture
Spare Part No. Name Price incl. VAT EAN Nr.
Spare Part No.:2398500 Name:KIT HANDLE Description:WALL MOUNTED, S29 EAN Nr.:5708516724759
Spare Part No.:2300500 Name:KIT CARTRIDGE HYDRO LOW Description:ST212 Z1245, WALL EAN Nr.:5708516518723
Spare Part No.:1381000 Name:KIT STOP VALVE Description: EAN Nr.:5708516471172
Spare Part No.: 136430000 Name:WALL PLATES 2 PCS Price incl. VAT: 0,00 EUR EAN Nr.:5708516338291
