Kitchen Mixer
Kitchen Mixer

Apollo Classic
Kitchen Mixer chrome (Discontinued)

Article no.:

5012100

Finish:

Chrome

Series:

Apollo Classic

EAN no.:

5708516599661

Anti Scalding
Anti Scalding
Eco Click
Eco Click
Pull Out
Pull Out
Standard features
1 handle
120° swivel limitation
Single function spray head
Ball unit regulation
Approvals
Drawings & documents

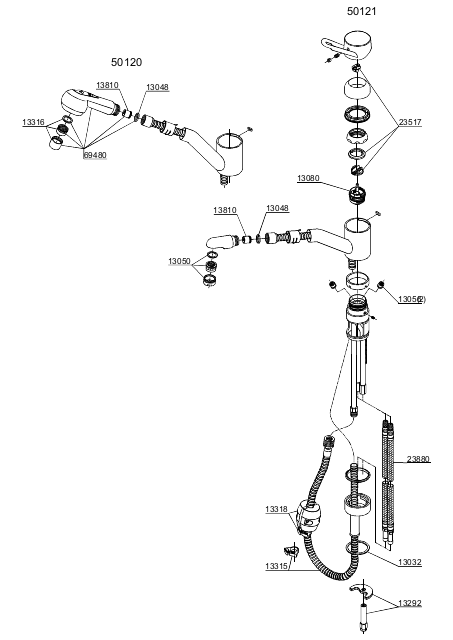

DownloadSpare part drawing

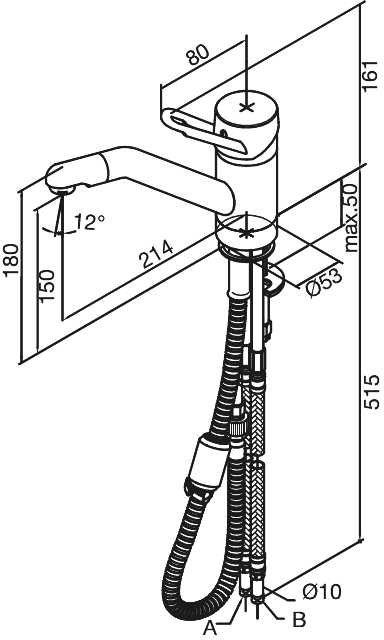

DownloadDimension drawing
DownloadCleaning guide
DownloadProduct picture
Spare Part No. Name Description EAN Nr.
Spare Part No.:1305000 Name:AERATOR M24X1-A Description: EAN Nr.:5708516144786
Spare Part No.:1329200 Name:MOUNTING KIT Description: EAN Nr.:5708516420361
Spare Part No.:0315100 Name:HOSE PEX M10*1 Description:450 MM, 3/8" EAN Nr.:5708516734710
Spare Part No.:1381000 Name:STOP VALVE Description: EAN Nr.:5708516471172
Spare Part No.:1331800 Name:COUNTER WEIGHT Description:HOSE CLAMPS Ø9,2-10,5 , Ø10,2-12 & Ø12-13,5 EAN Nr.:5708516151548
Spare Part No.:1303200 Name:GASKET Ø48/41X2 Description: EAN Nr.:5708516163282
Spare Part No.:1331500 Name:HOSE PULL OUT Description:1500 MM, METAL EAN Nr.:5708516151562
Spare Part No.:2351700 Name:TEMP. & FLOW REGULATION Description:& BRAKE EAN Nr.:5708516583363
Spare Part No.:1308000 Name:BALL UNIT COMPLETE Description: EAN Nr.:5708516144540
Spare Part No.:1305600 Name:VALVE SEATS COMPLETE Description: EAN Nr.:5708516144588
Spare Part No.:1304800 Name:GASKET Description:F/PULL OUT HOSE EAN Nr.:5708516145448
