Bell

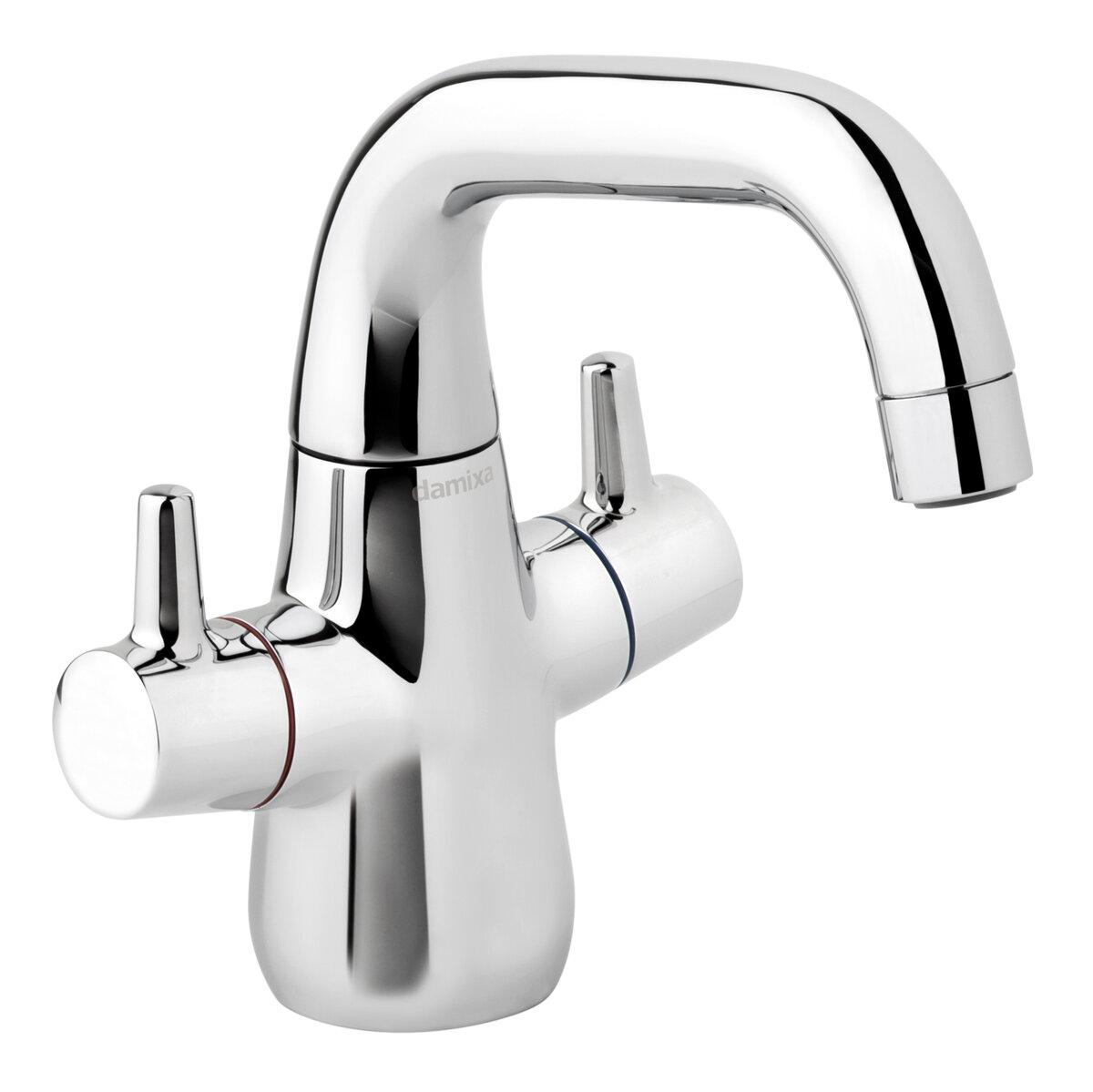

Basin Mixer with pop up waste chrome (Discontinued)

Article no.:

908970000

Finish:

Chrome

Series:

Bell

EAN no.:

5708516821687

Soft and inviting

Chrome and steel can also be inviting, even quite cosy. Just look at Bell with its beautifully curved shapes. A different kind of tap range, where the bottom of the body seemingly floats over the tabletop or washbasin. Stylish and environmentally conscious features have been incorporated into the design.

How we created Bell

What should the tap of the future look like? Which functions will be needed? These were some of the questions we asked - both Danish consumers and ourselves. A design day, concept selection and presentation to a focus group supplied us the answers. We called the design concept cosy chrome and the result was Bell.

Our own designer, Jakob Jensen, says:

"The idea behind Bell was to take something cold and sharp and make it soft and round. Then make it natural and inviting. In addition, Bell was designed using fewer gradients and openings, making it extremely easy to clean."

Download Datasheet

Rub Clean

Eco Click

X-Change

Technical information & downloads Spare parts Contact

Technical information & downloads

Standard features

2 handle

120° swivel limitation

Rub-Clean

Water consumption max.6 l/min

Eco-Click water saving feature

Pop up waste with click function

Ceramic head part

Certificates

Typegodkendelse

Drawings & documents

Download Spare part drawing

Download User guide

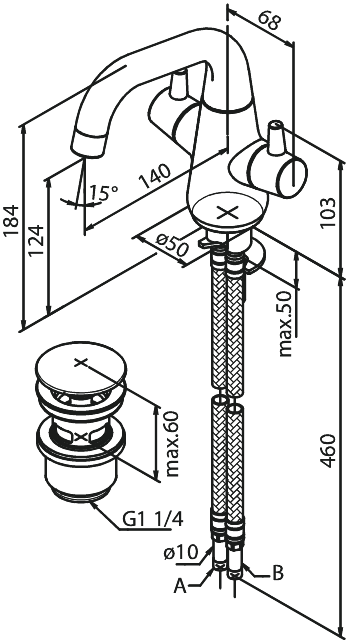

Download Dimension drawing

Download Cleaning guide

Download Product picture

Spare parts

Spare Part No.	Name	Price incl. VAT	EAN Nr.
Spare Part No.:0322200	Name:KIT AERATOR M22x1	Description:RUBCLEAN, 6L/MIN	EAN Nr.:5708516814818
Spare Part No.: 2306500	Name:KIT COLOR MARKING RED & BLUE	Price incl. VAT: 0,00 EUR	EAN Nr.:5708516515098
Spare Part No.:2306900	Name:KIT SPRING RING ECO-CLICK	Description:	EAN Nr.:5708516547273
Spare Part No.: 1329800	Name:KIT REGULATION UNIT	Price incl. VAT: 0,00 EUR	EAN Nr.:5708516337690
Spare Part No.:9300700	Name:KIT COVER PLATE	Description:	EAN Nr.:5708516822264
Spare Part No.:9300800	Name:KIT O-RINGS AND WEAR RINGS	Description:INCL. SWIVEL LIMITATION	EAN Nr.:5708516822271
Spare Part No.: 1329700	Name:KIT REGULATION UNIT	Price incl. VAT: 0,00 EUR	EAN Nr.:5708516337683
Spare Part No.:0310800	Name:KIT KEY NV2 & SCREW	Description:M4X8, M4X10, M4X12	EAN Nr.:5708516727668
Spare Part No.:2358500	Name:KIT TRIGGERING DEVICE MM	Description:RELEASE UNIT, RING F/MIXER & SCREW M4X10	EAN Nr.:5708516603641
Spare Part No.:5835700	Name:KIT DISTANCE RING	Description:	EAN Nr.:5708516100676
Spare Part No.: 238500000	Name:COMPLETE BASEVENTIL	Price incl. VAT: 0,00 EUR	EAN Nr.:5708516712022
Spare Part No.:2388000	Name:KIT HOSE PEX M10*1	Description:450 MM, 3/8"	EAN Nr.:5708516709534
Spare Part No.: 482210000	Name:PROD ACC X-CHANGE	Description:CLICK-WASTE	EAN Nr.:5708516611912
