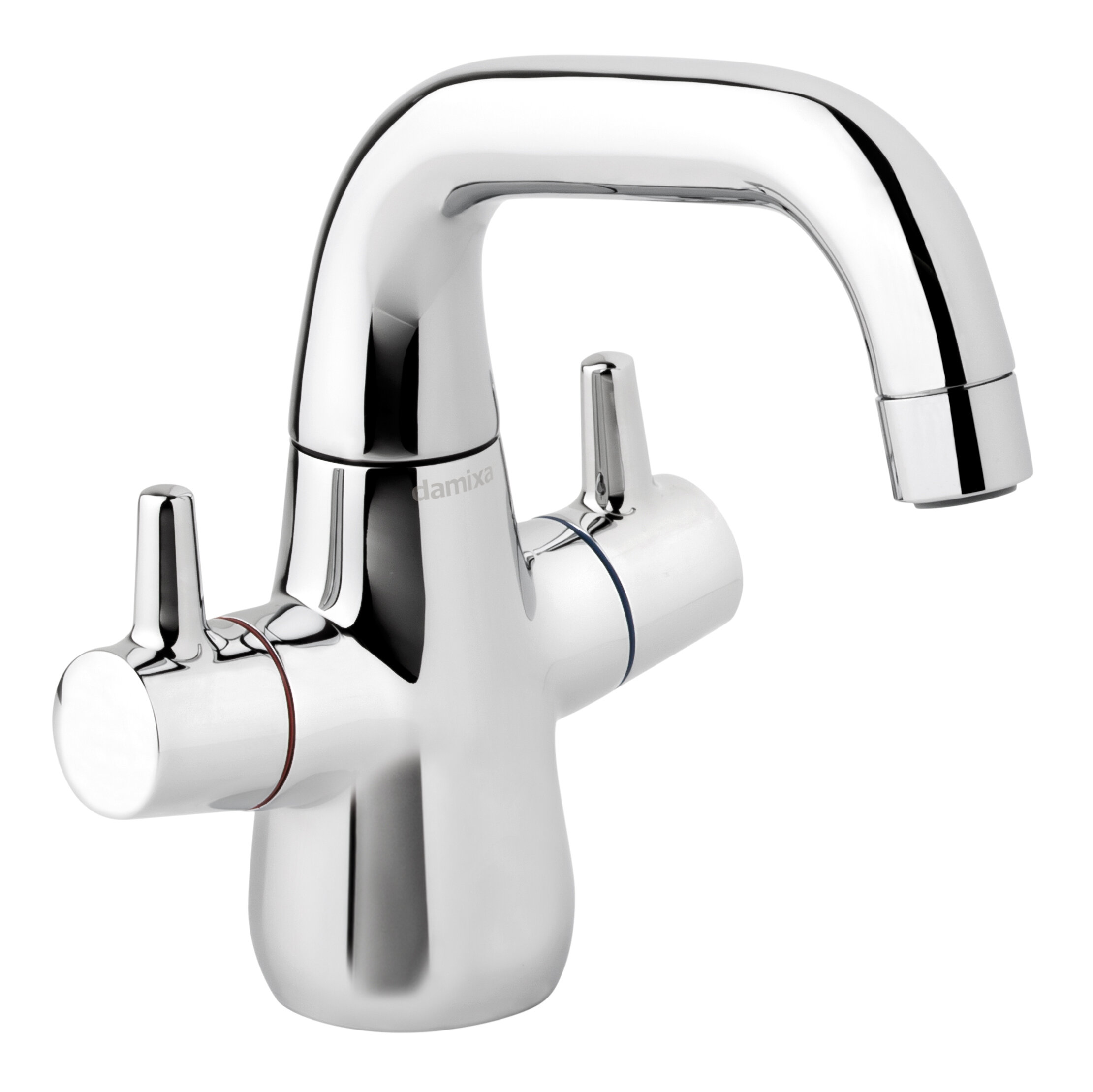

Product picture of danish designed basin mixer in chrome.
Product picture of danish designed basin mixer in chrome.

Bell
Basin Mixer chrome (Discontinued)

Article no.:

908670000

Finish:

Chrome

Series:

Bell

EAN no.:

5708516821670

Soft and inviting

Chromium and steel can also be inviting, even quite cosy. Just look at Bell with its beautifully curved shapes. A different kind of tap range, where the bottom of the body seemingly floats over the tabletop or washbasin. Stylish and environmentally conscious features have been incorporated into the design.

How we created Bell

What should the tap of the future look like? Which functions will be needed? These were some of the questions we asked - both Danish consumers and ourselves. A design day, concept selection and presentation to a focus group supplied us the answers. We called the design concept cosy chrome and the result was Bell.

Our own designer, Jakob Jensen, says:

"The idea behind Bell was to take something cold and sharp and make it soft and round. Then make it natural and inviting. In addition, Bell was designed using fewer gradients and openings, making it extremely easy to clean."

Rub Clean
Rub Clean
Eco Click
Eco Click
X-Change
X-Change
Standard features
2 handle
120° swivel limitation
Rub-Clean
Water consumption max.6 l/min
Eco-Click water saving feature
Ceramic head part
Certificates
Drawings & documents

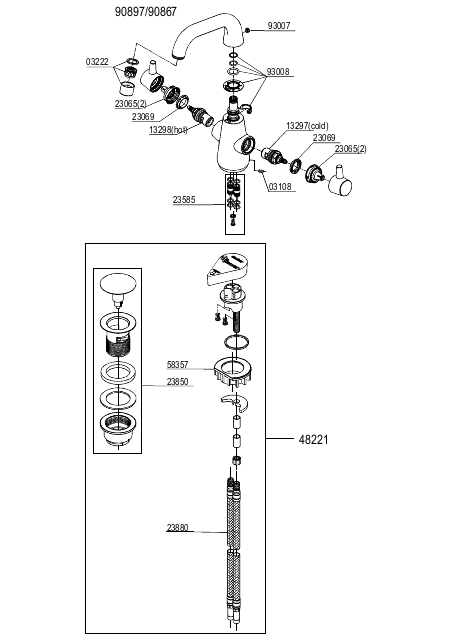

Download Spare part drawing
Download User guide

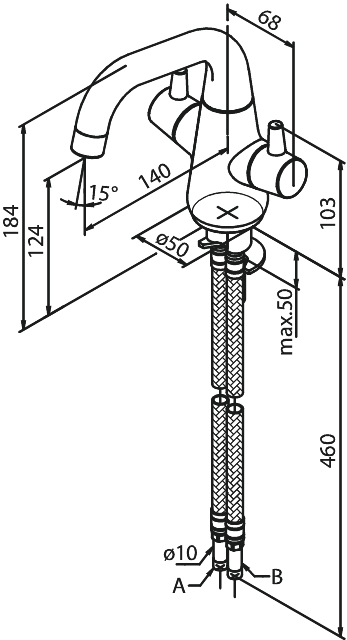

Download Dimension drawing
Download Cleaning guide
Download Product picture
Spare Part No. Name Price incl. VAT EAN Nr.
Spare Part No.:0322200 Name:KIT AERATOR M22x1 Description:RUBCLEAN, 6L/MIN EAN Nr.:5708516814818
Spare Part No.: 2306500 Name:KIT COLOR MARKING RED & BLUE Price incl. VAT: 0,00 EUR EAN Nr.:5708516515098
Spare Part No.:2306900 Name:KIT SPRING RING ECO-CLICK Description: EAN Nr.:5708516547273
Spare Part No.: 1329800 Name:KIT REGULATION UNIT Price incl. VAT: 0,00 EUR EAN Nr.:5708516337690
Spare Part No.:9300700 Name:KIT COVER PLATE Description: EAN Nr.:5708516822264
Spare Part No.:9300800 Name:KIT O-RINGS AND WEAR RINGS Description:INCL. SWIVEL LIMITATION EAN Nr.:5708516822271
Spare Part No.: 1329700 Name:KIT REGULATION UNIT Price incl. VAT: 0,00 EUR EAN Nr.:5708516337683
Spare Part No.:0310800 Name:KIT KEY NV2 & SCREW Description:M4X8, M4X10, M4X12 EAN Nr.:5708516727668
Spare Part No.:2358500 Name:KIT TRIGGERING DEVICE MM Description:RELEASE UNIT, RING F/MIXER & SCREW M4X10 EAN Nr.:5708516603641
Spare Part No.:5835700 Name:KIT DISTANCE RING Description: EAN Nr.:5708516100676
Spare Part No.:2388000 Name:KIT HOSE PEX M10*1 Description:450 MM, 3/8" EAN Nr.:5708516709534
