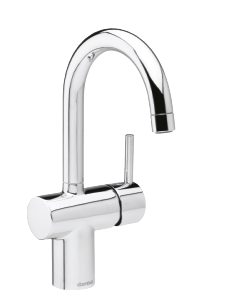

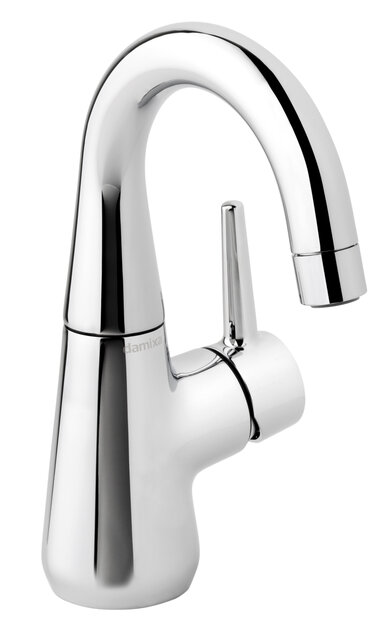

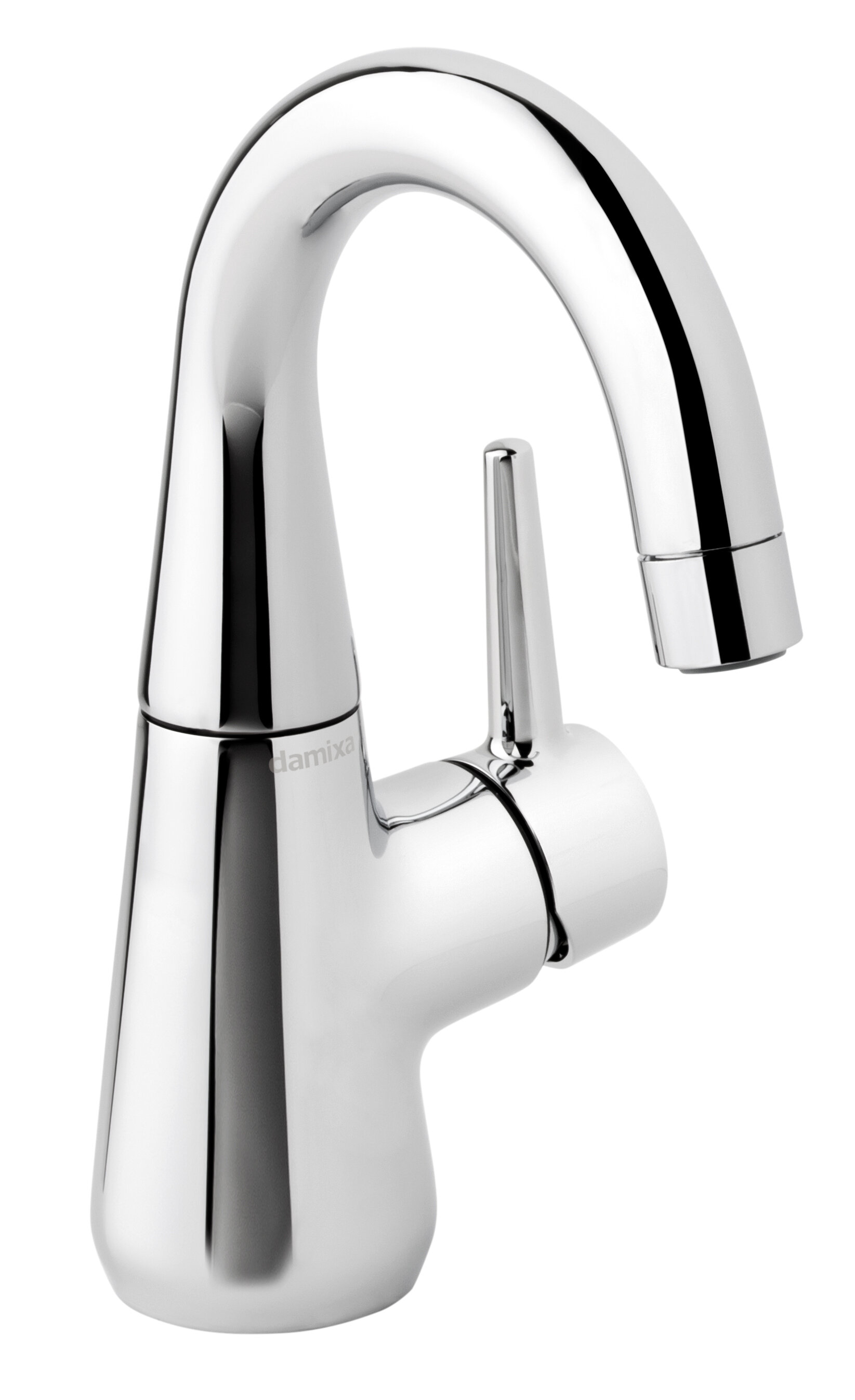

Bell
Basin Mixer chrome
- EAN no.:
- 5708516821694
- Article no.:
- 908170000
Surface: 00: Chrome
Anti Scalding
Cold Start
Eco Save
Rub Clean
X-ChangeDescription
Soft and inviting
Chrome and steel can also be inviting, even quite cosy. Just look at Bell with its beautifully curved shapes. A different kind of tap range, where the bottom of the body seemingly floats over the tabletop or washbasin. Stylish and environmentally conscious features have been incorporated into the design.
How we created Bell
What should the tap of the future look like? Which functions will be needed? These were some of the questions we asked - both Danish consumers and ourselves. A design day, concept selection and presentation to a focus group supplied us the answers. We called the design concept cosy chrome and the result was Bell.
Our own designer, Jakob Jensen, says:
"The idea behind Bell was to take something cold and sharp and make it soft and round. Then make it natural and inviting. In addition, Bell was designed using fewer gradients and openings, making it extremely easy to clean."
Specifikationer
Standard features
1 handle
120° swivel limitation
Ceramic cartridge
Cold-start
Rub-Clean
Scalding protection
Water consumption max.6 l/min
Eco-Save water saving feature
- EAN no.:
- 5708516821694
- Article no.:
- 908170000
Certifications

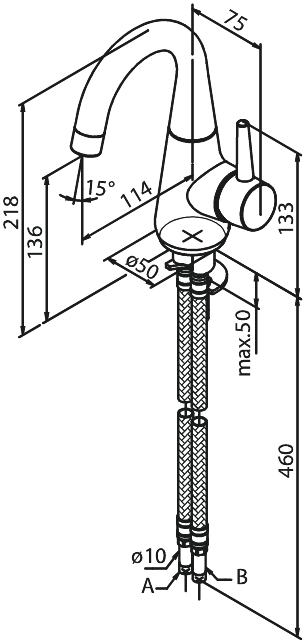

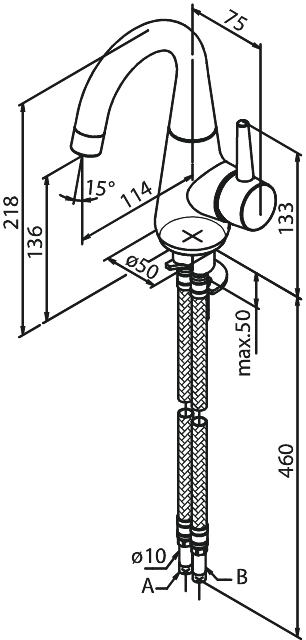

Installation

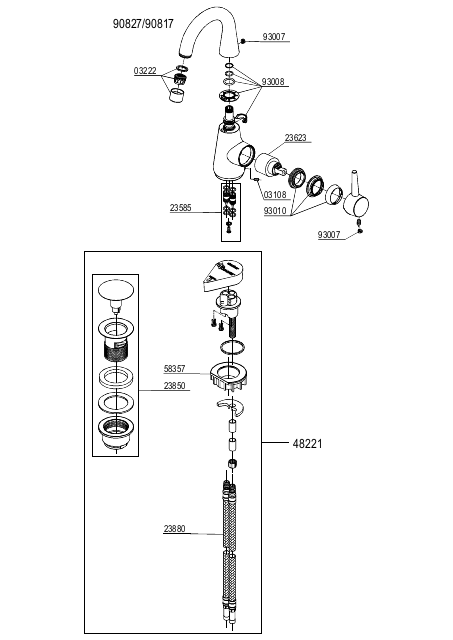

Spare parts

Spare Part No.: 0322200
Name: KIT AERATOR M22x1
Beskrivelse: RUBCLEAN, 6L/MIN
EAN Nr.: 5708516814818
Spare Part No.: 9300700
Name: KIT COVER PLATE
EAN Nr.: 5708516822264
Spare Part No.: 9300800
Name: KIT O-RINGS AND WEAR RINGS
Beskrivelse: INCL. SWIVEL LIMITATION
EAN Nr.: 5708516822271
Spare Part No.: 2362300
Name: KIT CARTRIDGE KN35
Beskrivelse: Ø35
Price incl. VAT: 0,00 EUR
EAN Nr.: 15708516727207
Spare Part No.: 0310800
Name: KIT KEY NV2 & SCREW
Beskrivelse: M4X8, M4X10, M4X12
EAN Nr.: 5708516727668
Spare Part No.: 9301000
Name: KIT COVER AND LOCKING NUT
Beskrivelse: INCL COLOR MARKING
EAN Nr.: 5708516822288
Spare Part No.: 2358500
Name: KIT TRIGGERING DEVICE MM
Beskrivelse: RELEASE UNIT, RING F/MIXER & SCREW M4X10
EAN Nr.: 5708516603641
Spare Part No.: 5835700
Name: KIT DISTANCE RING
EAN Nr.: 5708516100676
Spare Part No.: 2388000
Name: KIT HOSE PEX M10*1
Beskrivelse: 450 MM, 3/8"
EAN Nr.: 5708516709534
