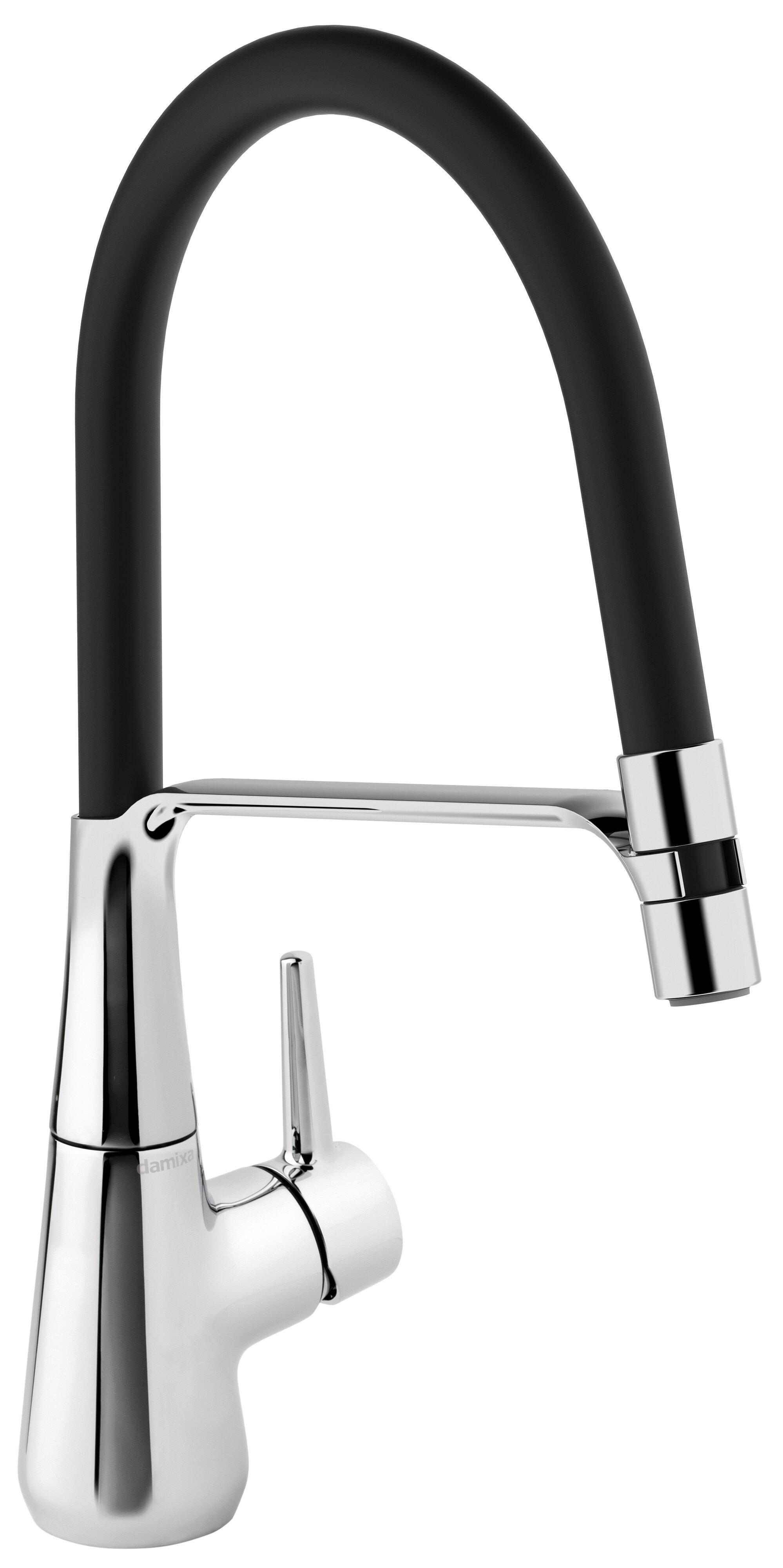

Pro Kitchen Mixer chrome (Discontinued)

Article no.:

901280000

Finish:

Chrome

Series:

Bell

EAN no.:

5708516827344

Bell Pro is a 2019 series extension and a part of our Pro range, which includes the stylish, flexible and practical black spout hose that makes You able to reach all corners of your kitchen sink.

Soft and inviting

Chrome and steel can also be inviting, even quite cosy. Just look at Bell with its beautifully curved shapes. A different kind of tap range, where the bottom of the body seemingly floats over the tabletop or washbasin. Stylish and environmentally conscious features have been incorporated into the design.

How we created Bell

What should the tap of the future look like? Which functions will be needed? These were some of the questions we asked - both Danish consumers and ourselves. A design day, concept selection and presentation to a focus group supplied us the answers. We called the design concept cosy chrome and the result was Bell.

Our own designer, Jakob Jensen, says:

"The idea behind Bell was to take something cold and sharp and make it soft and round. Then make it natural and inviting. In addition, Bell was designed using fewer gradients and openings, making it extremely easy to clean."

Pull Out
Pull Out
Rub Clean
Rub Clean
Anti Scalding
Anti Scalding
Cold Start
Cold Start
Eco Save
Eco Save
X-Change
X-Change
Standard features
1 handle
120° swivel limitation
Ceramic cartridge
Cold-start
Rub-Clean
Scalding protection (38ºC)
Water consumption max. 8 l/min
Eco-Save water saving feature
Drawings & documents
Download Spare part drawing
Download Dimension drawings (Concealed)

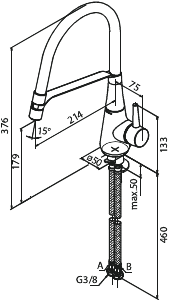

Download Dimension drawing
Download Cleaning guide
Download Product picture
Spare Part No. Name Price incl. VAT EAN Nr.
Spare Part No.:9304900 Name:AERATOR M22X1 Description:SLC 8L/MIN, RUB CLEAN EAN Nr.:5708516827672
Spare Part No.:9300700 Name:KIT COVER PLATE Description: EAN Nr.:5708516822264
Spare Part No.:9300800 Name:KIT O-RINGS AND WEAR RINGS Description:INCL. SWIVEL LIMITATION EAN Nr.:5708516822271
Spare Part No.: 2362300 Name:KIT CARTRIDGE KN35 Price incl. VAT: 0,00 EUR EAN Nr.:5708516727200
Spare Part No.:0310800 Name:KIT KEY NV2 & SCREW Description:M4X8, M4X10, M4X12 EAN Nr.:5708516727668
Spare Part No.:9301000 Name:KIT COVER AND LOCKING NUT Description:INCL COLOR MARKING EAN Nr.:5708516822288
Spare Part No.:2358500 Name:KIT TRIGGERING DEVICE MM Description:RELEASE UNIT, RING F/MIXER & SCREW M4X10 EAN Nr.:5708516603641
Spare Part No.:5835700 Name:KIT DISTANCE RING Description: EAN Nr.:5708516100676
Spare Part No.:0315100 Name:KIT HOSE PEX M10*1 Description:450 MM, 3/8" EAN Nr.:5708516734710
Spare Part No.: 482200000 Name:PROD ACC X-CHANGE Description: EAN Nr.:5708516602941
