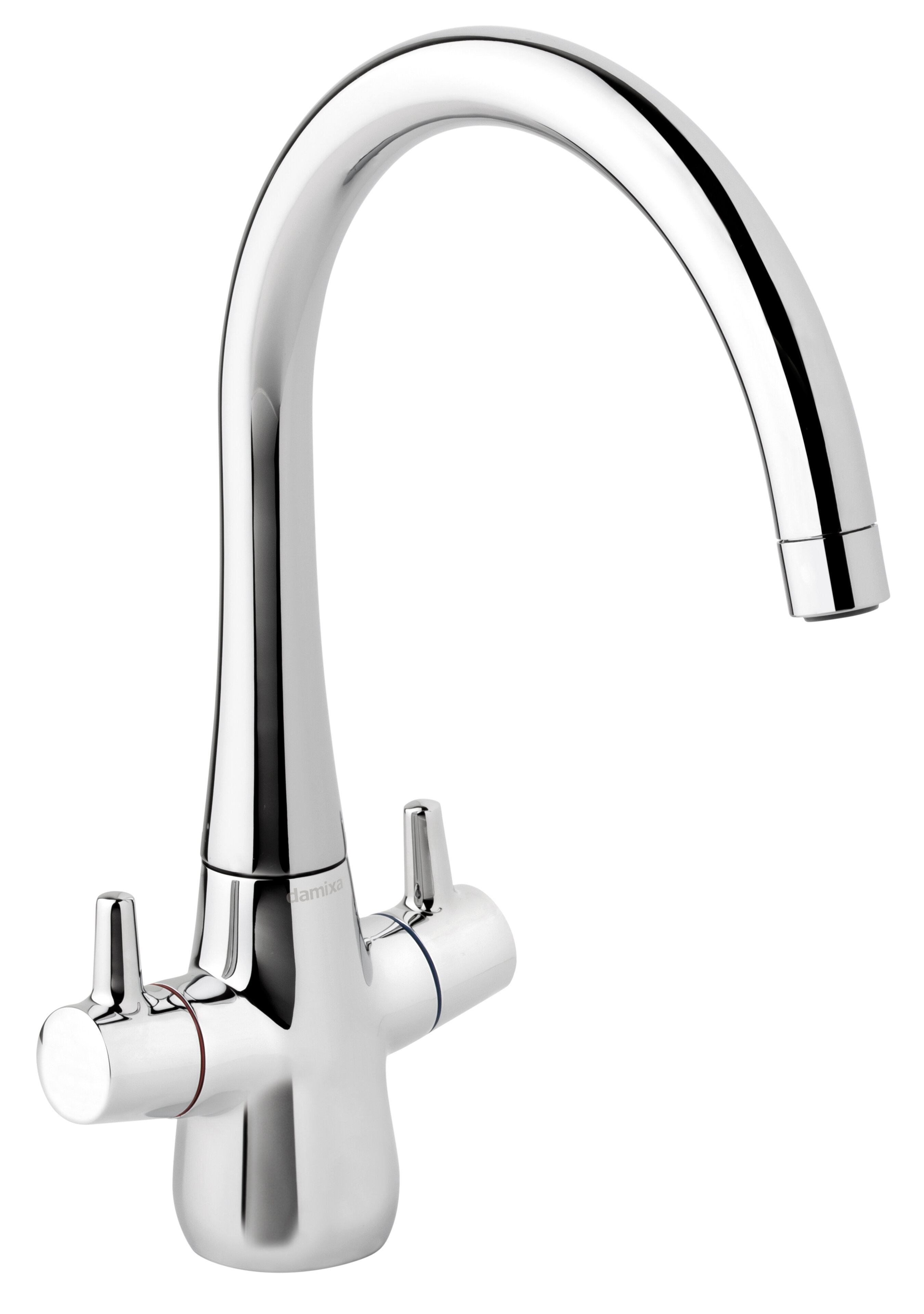

2-grip Bell kitchen mixer
2-grip Bell kitchen mixer

Bell
Kitchen mixer chrome (Discontinued)

Article no.:

9007800

Finish:

Chrome

Series:

Bell

Designer:

Jakob Jensen

EAN no.:

5708516821786

Soft and inviting

Chrome and steel can also be inviting, even quite cosy. Just look at Bell with its beautifully curved shapes. A different kind of tap range, where the bottom of the body seemingly floats over the tabletop or washbasin. Stylish and environmentally conscious features have been incorporated into the design.

How we created Bell

What should the tap of the future look like? Which functions will be needed? These were some of the questions we asked - both Danish consumers and ourselves. A design day, concept selection and presentation to a focus group supplied us the answers. We called the design concept cosy chrome and the result was Bell.

Our own designer, Jakob Jensen, says:

"The idea behind Bell was to take something cold and sharp and make it soft and round. Then make it natural and inviting. In addition, Bell was designed using fewer gradients and openings, making it extremely easy to clean."

Eco Click
Eco Click
Rub Clean
Rub Clean
X-Change
X-Change
Standard features
2 handle
120° swivel limitation
Rub-Clean
Water consumption max. 8 l/min
Eco-Click water saving feature
Ceramic head part
Approvals
Drawings & documents
Download Spare part drawing
Download User guide
Download Dimension drawing
Download Cleaning guide
Download Product picture
Download 3D files
Spare Part No. Name Description EAN Nr.
Spare Part No.:0315100 Name:HOSE PEX M10*1 Description:450 MM, 3/8" EAN Nr.:5708516734710
Spare Part No.:5835700 Name:DISTANCE RING Description: EAN Nr.:5708516100676
Spare Part No.:1329700 Name:REGULATION UNIT Description:COLD EAN Nr.:5708516337683
Spare Part No.:1329800 Name:REGULATION UNIT Description:HOT EAN Nr.:5708516337690
Spare Part No.:2306900 Name:SPRING RING ECO-CLICK Description: EAN Nr.:5708516547273
Spare Part No.:0310800 Name:KEY NV2 & SCREW Description:M4X8, M4X10, M4X12 EAN Nr.:5708516727668
Spare Part No.:2306500 Name:COLOR MARKING RED & BLUE Description:0 EAN Nr.:5708516515098
Spare Part No.:4822000 Name:PROD ACC X-CHANGE Description: EAN Nr.:5708516602941
Spare Part No.:2358500 Name:TRIGGERING DEVICE MM Description:RELEASE UNIT, RING F/MIXER & SCREW M4X10 EAN Nr.:5708516603641
Spare Part No.:0322400 Name:AERATOR M22X1 Description:RUBCLEAN, 8L/MIN EAN Nr.:5708516815075
Spare Part No.:9300700 Name:COVER PLATE Description: EAN Nr.:5708516822264
Spare Part No.:9300800 Name:O-RINGS AND WEAR RINGS Description:INCL. SWIVEL LIMITATION EAN Nr.:5708516822271
