Arc

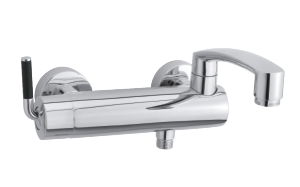

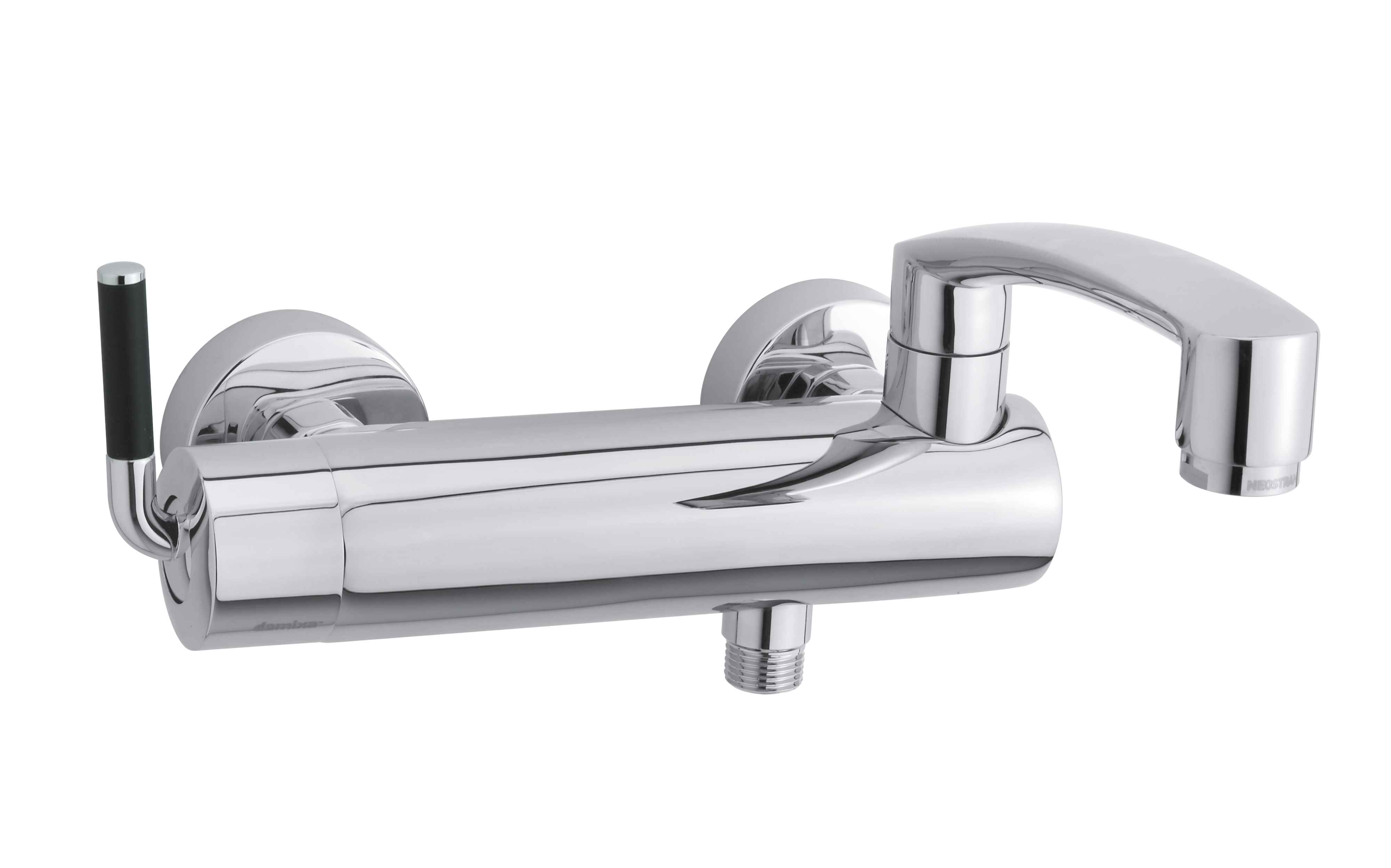

Bath Shower Mixer chrome/black
- EAN no.:
- 5708516726821
- Article no.:
- 291007400
Anti Scalding
Eco Click
High FlowDescription
All round innovation and elegance
Arc is a textbook example of Danish design at its best. Innovation when it makes most sense. With its unique 360-degree operation, Arc can be manoeuvred all the way around the kitchen sink. The most flexible and versatile range of kitchen taps on the market is available with multi-coloured handles and spouts and has been awarded with both the Red Dot Design Award and iF Design Award.
How we created Arc
Arc is created from our desire to develop the most flexible Damixa tap fixture ever. As soon as the unique 360 degree movement was in place, the task of completing the innovation was up to designer Jakob Jensen:
“The challenge was to let the design show what Arc can do, in order for the user to be able to understand it intuitively. One could say that the functionality contributed greatly in dictating the design. For example, I chose to give the spout a different, more distinctive type of profile. The tap has been turned around to face the opposite side, giving the user a hint that it can be turned to 360 degrees,” says Jakob Jensen.
Specifikationer
Standard features
Ceramic cartridge
Scalding protection
Water consumption max.30 l/min
Standard 150mm centres
Eco-Click water saving feature
With 3/4" wall plates & eccentric unions
Hydro-ceramic cartridge
Diverts automatically when spout is folded away
1/2" connection for hand shower hose
- EAN no.:
- 5708516726821
- Article no.:
- 291007400
Installation
Spare parts

Spare Part No.: 2398574
Name: KIT HANDLE
Beskrivelse: WALL MOUNTED, BLACK/CHROME, S29
EAN Nr.: 5708516724766
Spare Part No.: 2300500
Name: KIT CARTRIDGE HYDRO LOW
Beskrivelse: ST212 Z1245, WALL
EAN Nr.: 5708516518723
Spare Part No.: 1381000
Name: KIT STOP VALVE
EAN Nr.: 5708516471172
Spare Part No.: 2360800
Name: KIT CERAMIC MODULE
Beskrivelse: WALL MOUNTED, S29
EAN Nr.: 5708516603870
